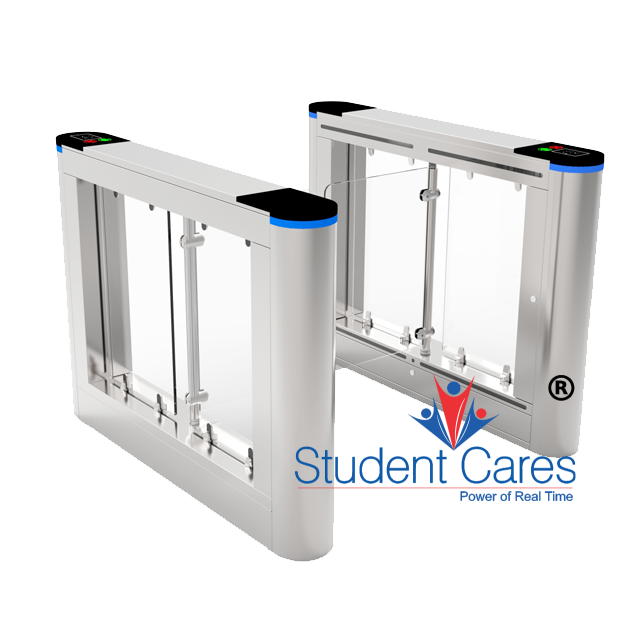

| Model 1 | ||
|---|---|---|
| Product Size | : | 1200*210*1000mm |
| Material Structure | : | 304 stainless steel, toughened glass, acrylic |
| Channel width | : | 600-900 mm |
| Outer Box | : | 1.5 mm |
| Driver Motor | : | DC 24V Brushless motor, no noise |
| Direction of Traffic | : | one-way traffic/two-way traffic 35-40 People/minute |
| Opening Mode | : | ID/IC card reader verification, infrared induction automatic opening, button opening etc. |
| Working environment | : | Indoor and outdoor (canopy is better) |
| Switch-on Signal | : | Dry Contact Signal |
| Protection Function | : | encoder limit, electromechanical anti-collision, infrared anti-pinch, illegal instrusion infrared alarm |
| Life | : | 9 million times |
| Power | : | 40-60 W |
| Applicable Temperature | : | -20-75 C |
| Advantage | : |
|
| Features | : |
|

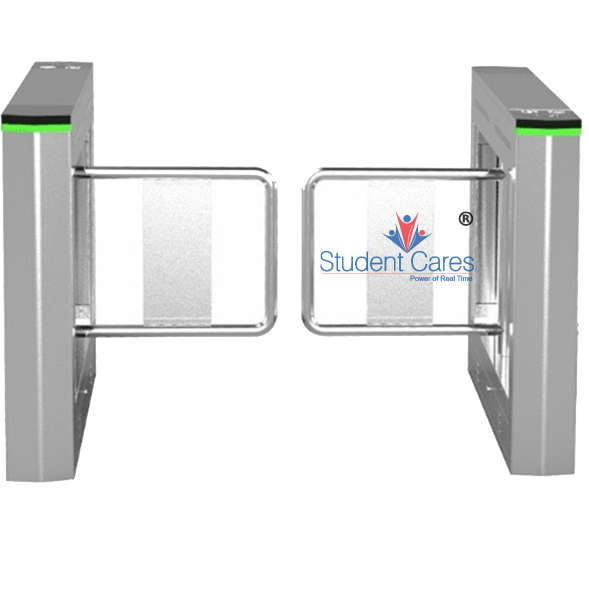

| Model 2 | ||
|---|---|---|
| Appearance size (mm) | : | 1200*300*980; Packaging size (mm): 1220*310*1000 Wing door width 265 mm; Channel width: 550 mm |
| Box thickness | : | full thickness 1.0mm |
| Equipment material composition | : | stainless steel, acrylic; door wing material can be customized |
| Configuration of core | : | standard wing gate core, with brush DC 24V |
| Direction of traffic | : | one-way/two-way traffic |
| Opening Mode | : | ID/IC card reader verification, infrared induction automatic opening, button opening, etc. |
| Switch-on Signal | : | Dry Contact Signal |
| Speed | : | 30-40 people / Minute |
| Protection function | : | Infrared anti-clip, illegal intrusion infrared alarm (domestic first-line brand, used outside the city) |
| Protection Level | : | IP32 or above |
| Customizable functions | : | Face Recognition, Fingerprint, Two-Dimensional code, Manual button, Remote switch, etc. |
| Working Environment | : | Indoor and Outdoor (with canopy outside) |
| Working Temperature | : | -20 C ~ 70 C; Relative humidity: less than 95%, no condensation. |
| Features | : |
|

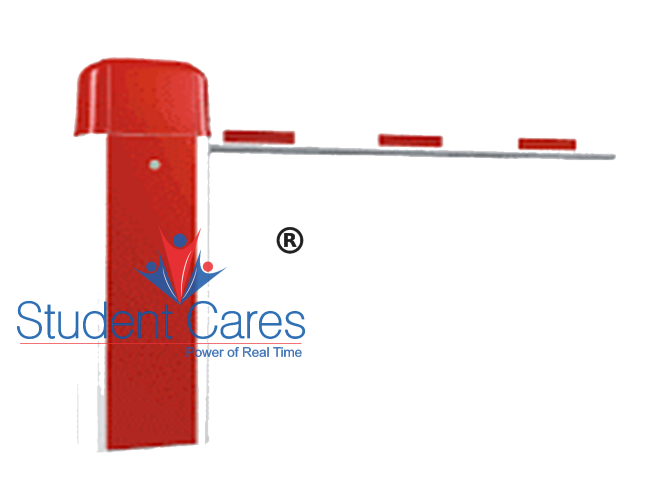

| Boom Barrier | ||
|---|---|---|
| Case Size | : | 1035*282*340 (mm) (40.7"H*11.1"*13.5") |
| Product | : | Security modern barrier gate price parking barrier gate pedestrian barrier gate with remote |
| Boom Size | : | 4M, 5M, 6M |
| Optional Color | : | Orange, blue or yellow |
| Action Time | : | 6 Sec. / 3 Sec |
| Rating Voltage | : | AC220V |
| Boom Height | : | 1035mm (40.7") |
| Storage Temperature | : | -35°C to +95°C |
| Working temperature | : | -30°C to +60°C |
| Relative humidity | : | < 90% coagulation free |
| Working temperature | : | AC230V±10%/AC110V±10% |
| Boom Type | : | Straight/Fence/Folding Boom |
| Rating Power | : | 100W |
| Boom LED light | : | Optional |
| Production Rating | : | IP65 |

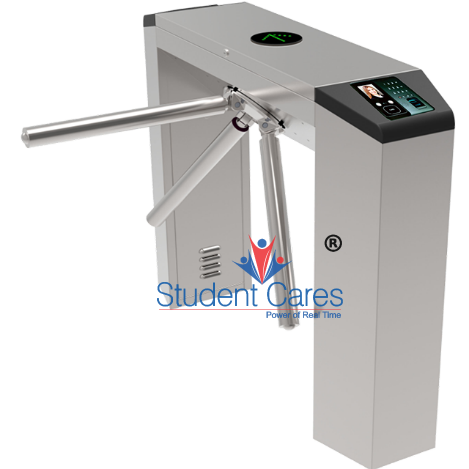

| Turnstile | ||
|---|---|---|
| Face Capacity | : | 1000 |
| Card Capacity | : | 5000 |
| Fingerprint Capacity | : | 5000 |
| Password Capacity | : | 5000 |
| Max Access log | : | 3,00,000 |
| Management log | : | 10000 |
| Identify Mode | : | Face, Fingerprint, Card, Password and Combinations |
| Display Language | : | English |
| LED | : | 1 (Red-Green dual color) |
| Recognition mode | : | Face, Finger, Pin, Card |
| Control Mode | : | Semi-Automatic/ Automatic/ Manual |
| Access Mode | : | Single/ Bi- direction |
| Communication Interface | : | Rs485, TCP/IP, P2P, Web, 4G (Optional) |
| Mode of Access Control | : | Professional pattern, wiegand and output, anti-sneak, anti-trailing |
| Access Speed | : | 30 person/ min |
| Working Environment | : | Indoor and outdoor (canopy is better) |
| Power | : | Ac 220V/ AC 110 V (optional) |
| Temprature of working | : | -15°c -75°c environment |
| Relative Humidity | : | Less than 95%, Non-Condenation |
| Size | : | 1200*280*960mm |
| Unlock Time | : | 0.2s |
| Pass Width | : | 550mm |
| Input | : | 100V ~ 240V |
| Driving voltage | : | 24v |
| Environment | : | -25 ~+ 70°c |
| Power Consumption | : | 30w |
| Features | : |
|

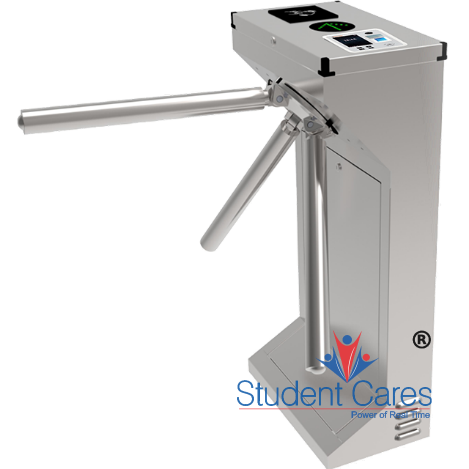

| Tripod | ||
|---|---|---|
| Card Capacity | : | 3000 |
| Fingerprint Capacity | : | 3000 |
| Max Access log | : | 2,00,000 |
| Management log | : | 10,000 |
| Identify Mode | : | Fingerprint, Card |
| Display Language | : | English |
| LED | : | Colour Display |
| Recognition mode | : | Card, Finger |
| Control Mode | : | Semi-Automatic/ Automatic/ Manual |
| Access Mode | : | Single/ Bi- direction |
| Communication Interface | : | Rs485, TCP/IP, P2P, Web, 4G (Optional) |
| Mode of Access Control | : | Professional pattern, Wiegand and Output, Anti-Sneak, Anti–Trailing |
| Access Speed | : | 30 person/ min |
| Working Environment | : | Indoor and outdoor (canopy is better) |
| Power | : | Ac 220V/ AC 110 V (optional) |
| Temprature of working | : | -15°c -75°c environment |
| Relative Humidity | : | Less than 95%, Non-Condenation |
| Size | : | 1200*280*960mm |
| Unlock Time | : | 0.2s |
| Pass Width | : | 550mm |
| Input | : | 100V ~ 240V |
| Driving voltage | : | 24v |
| Environment | : | -25 ~+ 70°c |
| Power Consumption | : | 30w |
| Input | : | 12v dry contact |
| Features | : |
|

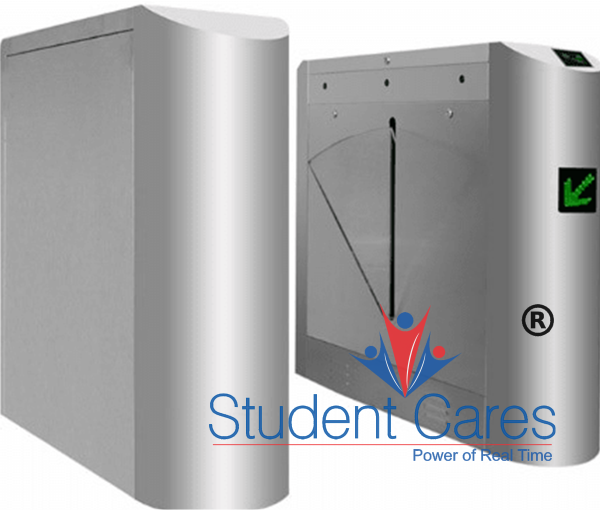

| Flap Barrier | ||
|---|---|---|
| Model | : | T 2601 |
| Flap Type | : | Single / Double |
| Product Size | : | 1500*185*1021mm |
| Passage Width | : | 750 mm |
| Material Structure | : | SS # 304 Stainless Steel Wire Drawing Body |
| Outer box Gaug | : | 1.5 mm thickness |
| Channel width | : | 600-1200mm |
| Rotation Direction | : | Bi-Directional / Uni Directional |
| Switch-on Signal | : | Dry Contact & High-low-level signals |
| Driving Motor | : | DC 24V brush less motor, no noise |
| Direction of Traffic | : | One-way traffic / Two-way traffic; speed: 35-40 people/ minute |
| Opening Mode | : | ID/IC card reader verification, infrared induction automatic opening, button opening, etc. |
| IP Protection | : | IP 55 |
| Protection Function | : | Encoder limit, electromechanical anti-collision, infrared anti-pinch, illegal intrusion infrared alarm |
| Barrier closing dela | : | User configurable 1-60 Sec |
| Movement Failure rate | : | 500 million trouble free operation |
| Switching Time | : | ?1sec |
| Infrared Quantity | : | 6 pairs |
| Power Supply | : | 110 -230 V AC +/- 10 |
| AC Input Power | : | : 90 ~ 100 Watt |
| Motor Type | : | 12 Volt DC |
| Applicable Temperature | : | -20 ~ 75C |
| Humidity | : | ? 95% |
| Certificate | : | CE, IP44 |
| Application | : | For People Restricted Entry / Exit at Industries, Factory, Railway Station, Office , Parks etc. |
| Advantage | : |
|

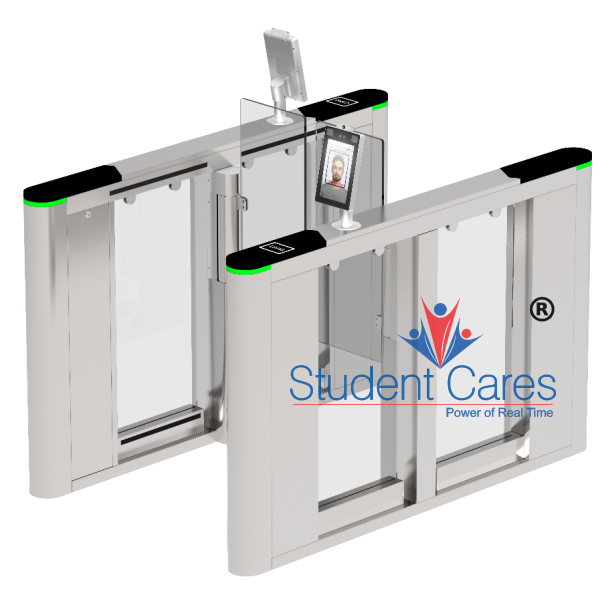

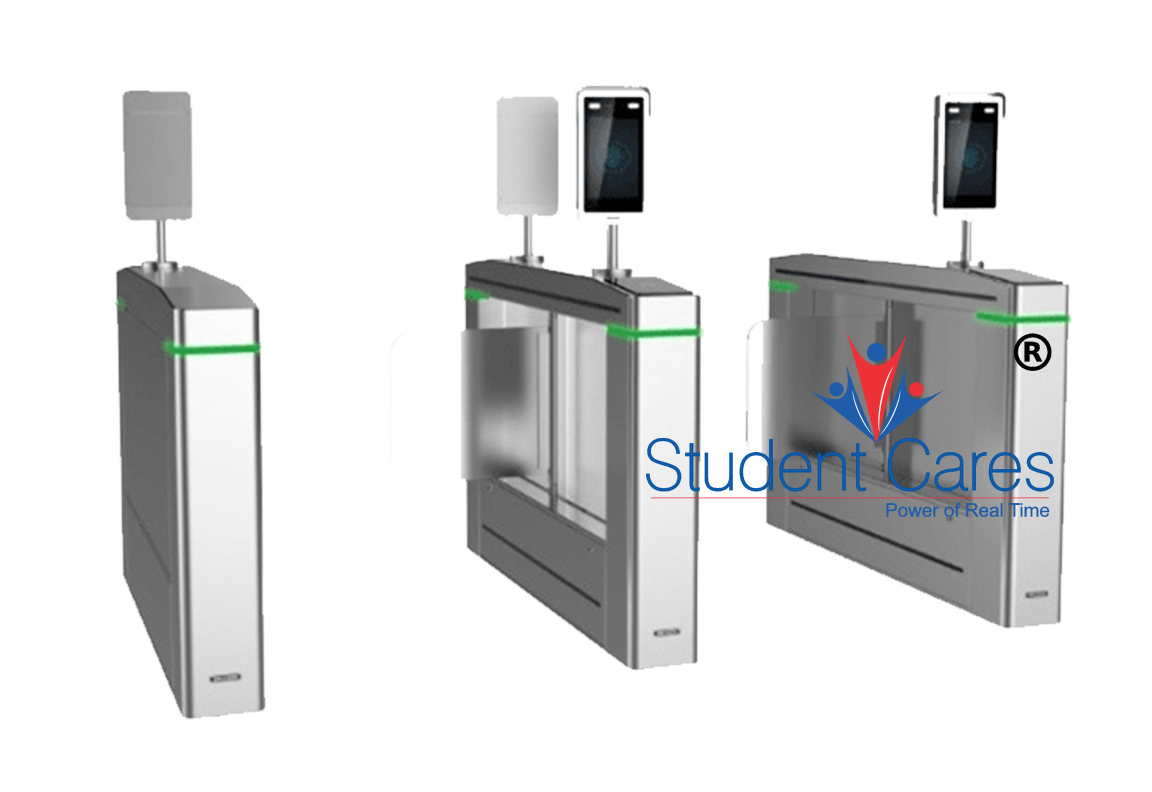

| Face Recognition Flip Barrier | ||
|---|---|---|
| Power Requirements | : | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working Temperature | : | -28°C ~ 60°C |
| Working Humidity | : | 20% - 95% (Non-condensing) |
| Working Environment | : | Indoor |
| Max. Speed of Throughput | : | 40 people per minute |
| Lane Width (mm) | : | 660 |
| Dimensions (L*W*H) | : | 1600 * 1040 * 1200 (mm) |
| Packing Dimensions (L*W*H) | : | 1700 * 300 * 1130 (mm) |
| Net Weight (kg) | : | 130kg |
| Weight with Packing (kg) | : | 150kg |
| Cabinet Material | : | SUS304 Stainless Steel |
| Lid Material | : | SUS304 Stainless Steel & Acrylic |
| Barrier Material | : | Acrylic |
| Barrier Movement | : | Swing |
| Emergency Mode | : | Supported |
| Face Capacity | : | 30,000 (1:N) / 50,000 (Optional) |
| Compatibility | : |
|
| Dimensions of Facial Recognition Device (H*L*D) | : | 227 * 143 * 26 (mm) |
| Facial Recognition Distance of Masked Individuals | : | 3m |
| Temperature Deviation | : | +/- 0.5 degrees |
| Body Temperature Detection Distance | : | 25cm – 50cm |
| Body Temperature Detection Speed | : | >0.3s |
| Temperature Selection Posture Angle Tolerance | : | +/-30 degrees |
